Box culverts are integral to modern civil engineering, especially in bridge and tunnel construction. These robust, versatile structures provide critical water management, load-bearing capacity, and durability, making them essential for infrastructure projects. This article highlights the significance of large box culverts, their applications, and why they are crucial for civil engineering projects.
What Are Box Culverts?
A box culvert is a rectangular, reinforced concrete structure designed to channel water beneath roads, railways, or embankments. Unlike traditional pipe culverts, box culverts have a larger cross-sectional area, allowing them to handle greater water flow. They are usually made from either precast or cast-in-place concrete and can be single or multi-celled, depending on the project’s requirements.
Key Benefits of Large Box Culverts
Superior Load-Bearing Capacity Box culverts are designed to withstand heavy loads, making them ideal for bridge and tunnel applications where they must support not only their own weight but also traffic such as vehicles, trains, or pedestrians. Their reinforced concrete construction allows them to handle both dynamic and static loads effectively.
Efficient Water Management These culverts excel at diverting water away from roads, railways, and other infrastructure, preventing flooding and waterlogging. In areas prone to heavy rainfall or water surges, their large capacity ensures smooth passage, helping to avoid water-related damage.
Durability and Longevity Built from high-quality reinforced concrete, box culverts are highly durable and can withstand extreme temperatures, water pressure, and soil movement. This resilience translates into longer lifespans, reducing the need for frequent maintenance or replacement.
Cost-Effectiveness Though the initial cost of large box culverts may be high, their long-term benefits far outweigh the expense. Their durability and low maintenance reduce lifecycle costs. Additionally, their modular design allows for quick installation, saving both time and labor costs.
Applications of Large Box Culverts
Underpasses and Tunnels Box culverts are commonly used to construct underpasses and tunnels. Their rectangular shape provides adequate space for vehicles and pedestrians, while their sturdy design supports the weight of roads or rail tracks above.

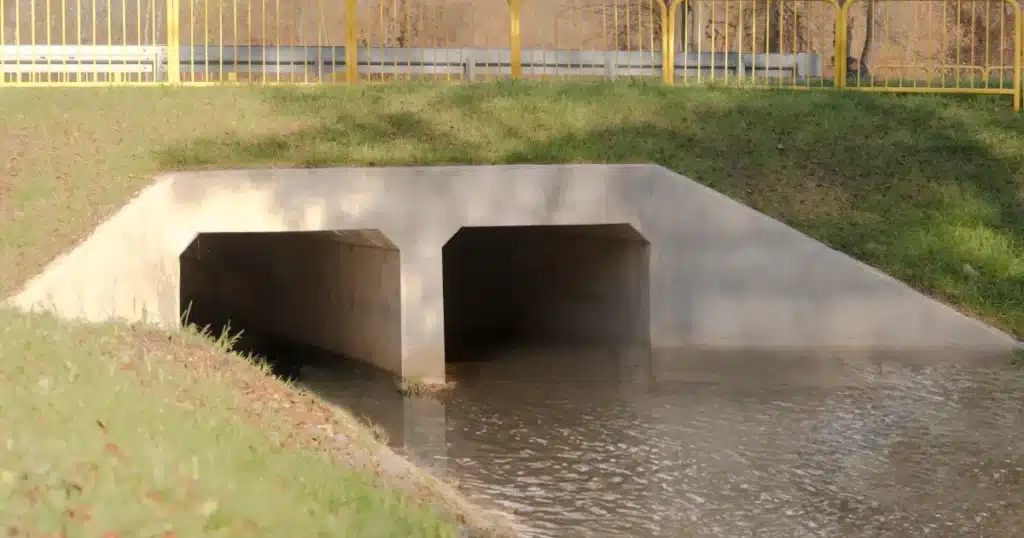

Waterway Crossings In bridge projects, box culverts are vital for crossing water bodies like streams and rivers. They channel water beneath the bridge, preventing erosion and maintaining the bridge’s structural integrity. Their large size ensures water can flow freely during peak flow periods without causing blockages.
Drainage Systems Proper drainage is essential in bridge and tunnel projects to prevent water accumulation, which can damage structures over time. Box culverts are a key component of drainage systems, ensuring water is directed away from critical areas and helping preserve the longevity of the infrastructure.
Wildlife Crossings Box culverts can also serve as wildlife crossings, particularly in areas where roads or railways intersect natural habitats. These culverts provide a safe passage for animals, reducing accidents and promoting ecological balance.
Design Considerations for Large Box Culverts
When integrating large box culverts into bridge or tunnel projects, several design factors must be considered:
Size and Capacity: The culvert must be sized correctly to handle both the expected water flow and load requirements.
Material Strength: The concrete must meet specific strength and durability standards.
Hydraulic Performance: Proper hydraulic analysis ensures the culvert can manage water flow efficiently, even during extreme weather conditions.
Environmental Impact: The design should minimize disruption to natural waterways and ecosystems.
Safety Standards: Adherence to local and international safety regulations is critical for ensuring the culvert’s reliability.
The Role of Precast Box Culverts

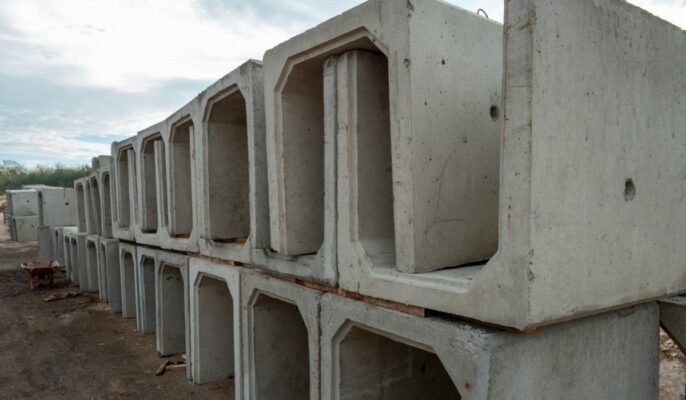

Precast box culverts are becoming increasingly popular due to their quality, consistency, and ease of installation. Manufactured off-site in controlled environments, these culverts are transported to the project site for rapid installation, reducing construction time and minimizing environmental impact. Precast culverts also offer more flexibility in design and a high level of precision.
Box Culverts in Action
Bridge Construction in Flood-Prone Areas
In flood-prone regions, box culverts are used in bridge projects to manage stormwater and prevent flooding. Their ability to handle sudden surges ensures the stability and longevity of the bridge.
Urban Tunnel Projects
In densely populated urban areas, where space is limited, box culverts are used to create underground pedestrian pathways and manage rainwater runoff efficiently.
Conclusion
Large box culverts are essential components in modern bridge and tunnel projects. Their ability to handle heavy loads, manage water efficiently, and provide long-term durability makes them an invaluable asset in civil engineering.
Whether used for underpasses, waterway crossings, drainage systems, or wildlife passages, box culverts contribute significantly to the safety, functionality, and longevity of infrastructure projects. Their widespread use ensures that modern infrastructure can withstand the demands of traffic, weather, and environmental challenges.
